Vertical Radiator Steam Vents

40-M Vertical Radiator Steam Vents

A float type vent with a single non-adjustable port. For use on ordinary one-pipe system not requiring proportional venting.

  • Connection Size: 1/8" Angle
  • Operating Pressure: Up to 6 PSI
  • Maximum Pressure: 10 PSI
  • 40-M Vertical Radiator Steam Vent

    • 41-M, 43-M, 45-M Vertical Radiator Steam Vents

    Single-port, straight-shank vent for small steam systems. Angle cut of telescopic siphon assures positive drainage.

    • Connection Sizes: 41 1/8" Straight shank, 43 1/4" Straight shank, 45 1/2" Female x 3/4" male straight shank
    • Maximum Pressure: 10 PSI

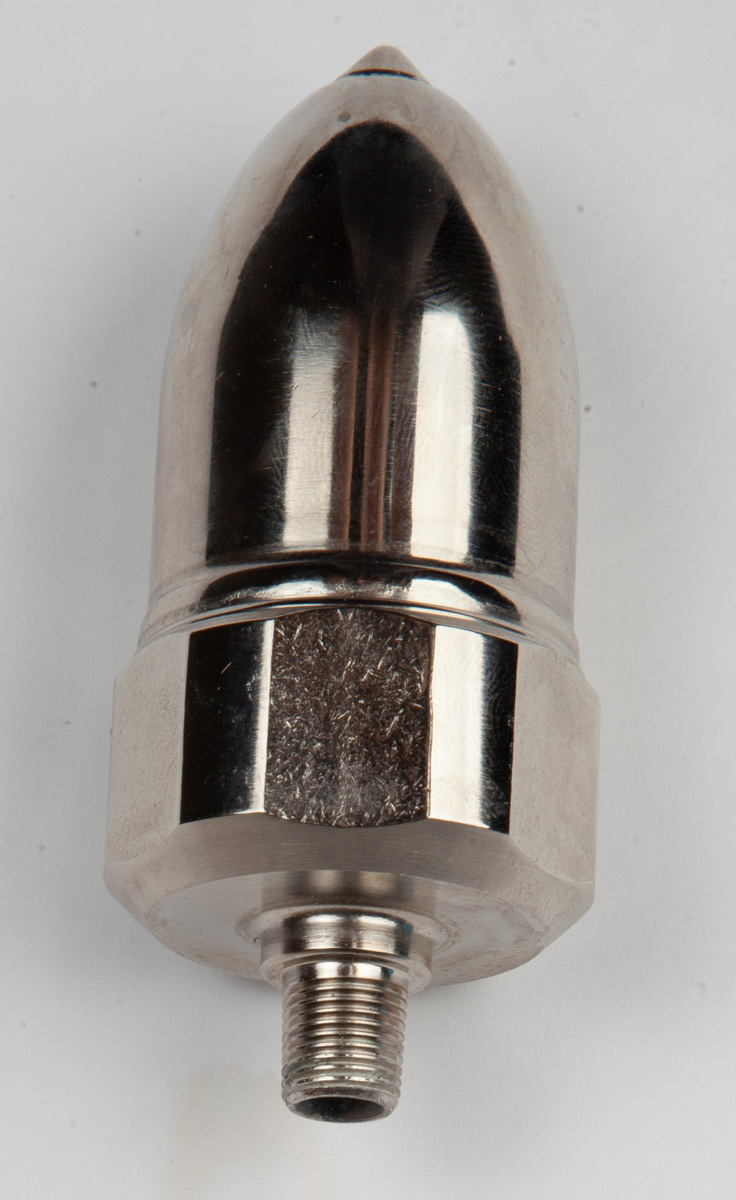

  • 41-M Vertical Radiator Steam Vent
  • 43-M Vertical Radiator Steam Vent

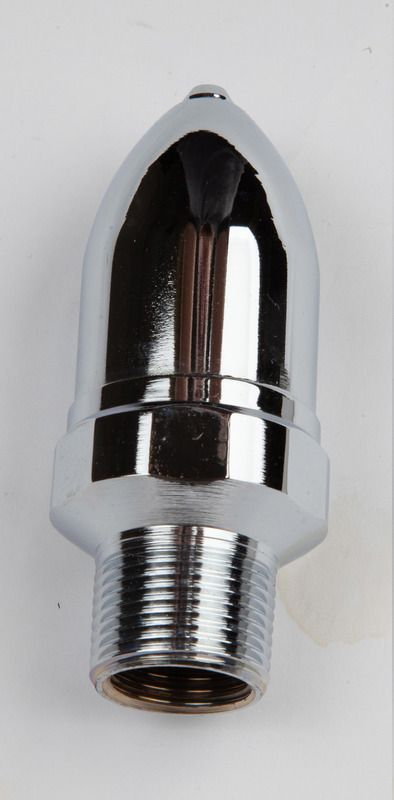

  • 45-M Vertical Radiator Steam Vent
